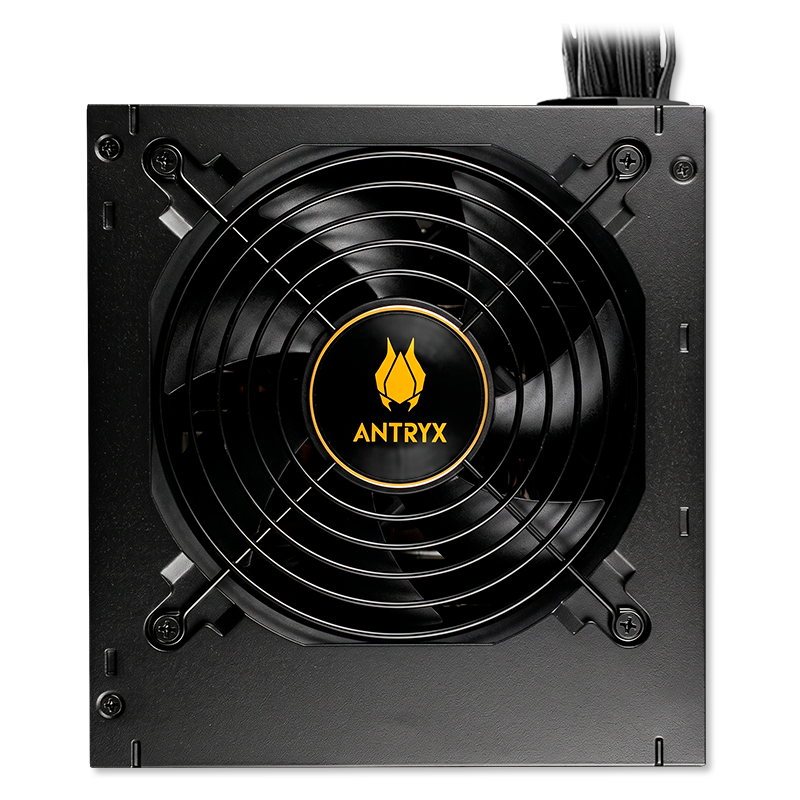

Kirin Gold Lite 750
Kirin Gold Lite 750
Characteristics
- 80 Plus Gold certification, defines Antryx’s commitment to the design and production of environmentally friendly power supplies
- High efficiency, efficiency curve: 87% – 90% – 87%, minimum efficiency 87%
- Intel Compatible, Updated to ATX v2.31 Intel
- Fully modular and flat flexible cable for better cable management, significantly reduces cable clutter in cases and systems
- DC to DC Converter Design – Featuring a patented DC connector module design, these units achieve near perfect DC to DC conversion, along with a true power factor greater than 0.9
- 105°C Aluminum Electrolytic Capacitors, built with the highest quality component resulting in longer product life
- Universal AC input: full range, plug and operate safely anywhere in the world: 100-240v
- Supported Multi-GPU Technologies: 6-pin and 8-pin PCI-E connectors to support all GPU platforms
- Green energy design, to comply with ErP 2014 and all new CE energy saving regulations
- Single +12V rail, provides the best power output, stability, and hardware compatibility
- Multiple protection design, Over-temperature protection (OTP), Over-voltage protection (OVP), Over-power protection (OPP), Over-current protection (OCP), Short-circuit protection (SCP)
- Quiet 120mm fan, 120mm sleeve-bearing fan optimizes noise reduction and thermal performance
Specifications
| Model: Kirin Gold Lite 750 |
| Capacity: 750W |
| Part number: GPW750S |
| Type: Intel Factor ATX V2.31 |
| Dimension: 150 x 140 x 86mm |
| Input voltage: 100-240Vac |
| Input current: 10A |
| Input frequency: 47 – 63 Hz |
| ACTIVE PFC PFC:> 0.96 |
| Wait time:> 14ms |
| Efficiency: Up to %90 |
| MTBF:> 100,000 hours |
| Protection: OPP, OCP, OTP, OVP, SCP |
| Standards: CE / CB / TUV / CCC / FCC |
| Fan type: 120 mm ball bearing bearing |
| Connectors: |
| MB 20+4 pins x 1 |
| CPU 8/4+4 pins x 2 |
| PCI-e 6+2 pins x 3 |
| SATA x 6 |
| 4 peripheral pins x 3 |
